ACTIVE PRINT DESIGN

ACTIVE DESIGN – PRINT YOUR DESIGN
We print your individually created or selected designs on any fabric of your choice. Here you will find various base cloth suggestions that you can use to transfer your design however you wish. Let yourself be inspired for new designs, remarkable colours and creative ideas.

THIS IS HOW IT’S DONE
Select a design from the design gallery
Recolour according to your wishes.
Select a printing base cloth.
BASE CLOTH FOR PRINTING
Individual printing offers you limitless possibilities and flexibility. We will produce the fabric as required by your project – in an economic and efficient manner. We offer you 15 different flame retardant base cloth for printing. One of these, no doubt, will be suitable for your project.
You will find a great selection of designs in our Design Gallery and our ColourLAB

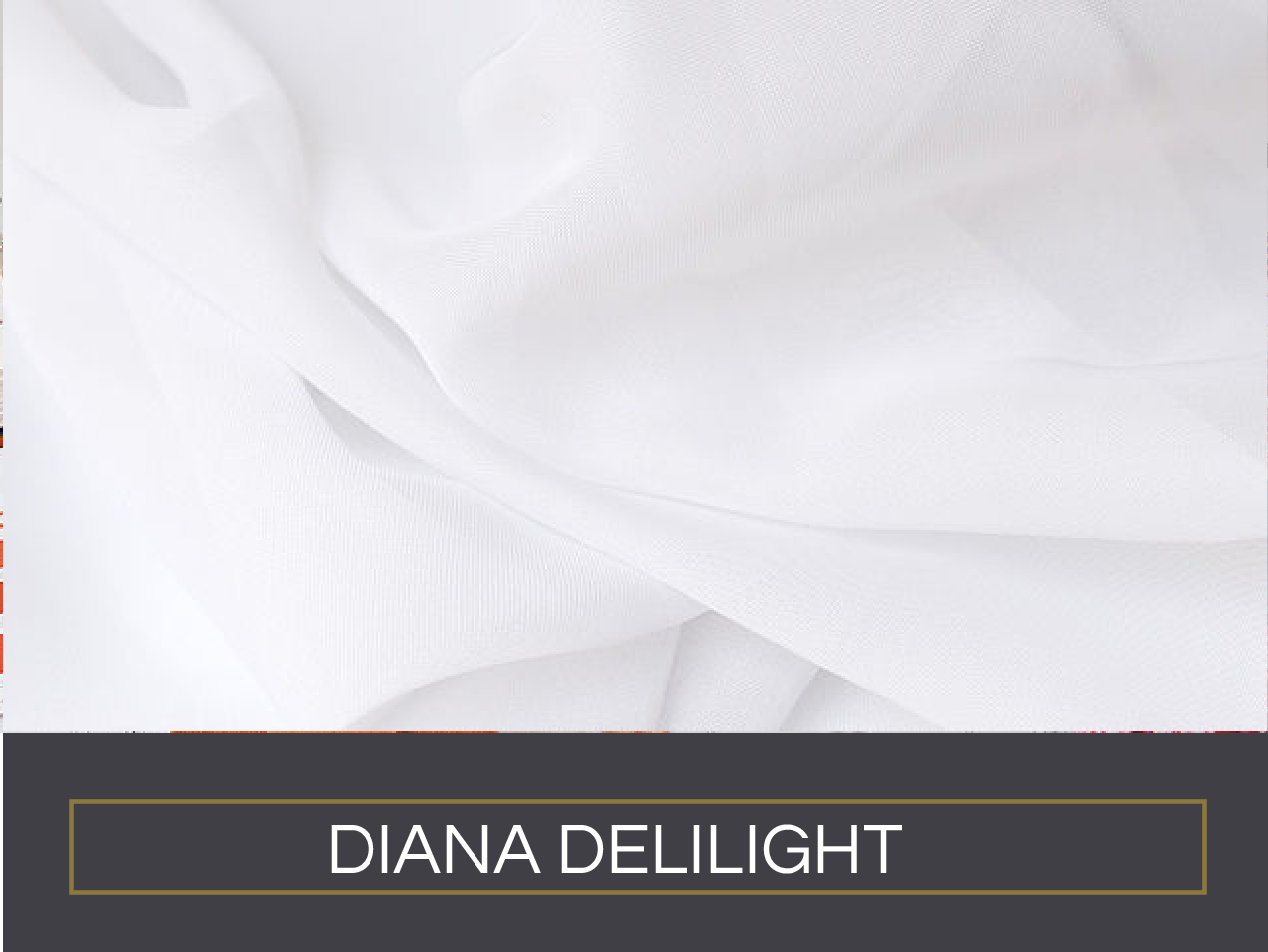

Light sheer
Width room high approx. 300 cm | Weight approx. 55 g/m² | 100% Polyester FR
Flame resistance:
DIN 4102/B1, BS 5867 type B,
IMO Res. A471 (XII), EN 137

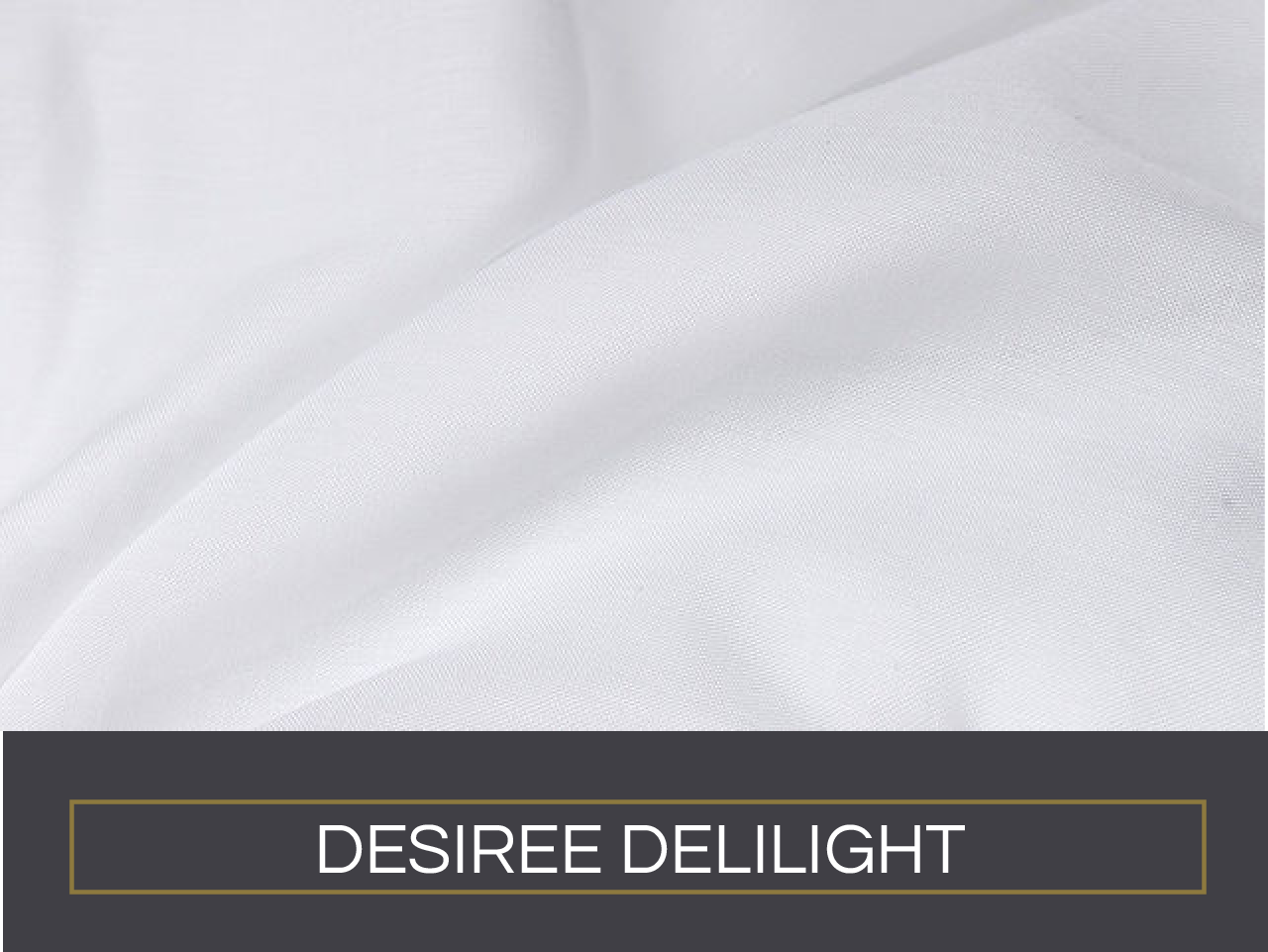

A sheer with a cotton look
Width room high approx. 300 cm | Weight approx. 70 g/m² | 100% Polyester Trevira CS
Flame resistance:
DIN 4102/B1, M1, BS 5867 Typ C,
IMO Res. A471 (XII), EN 13773

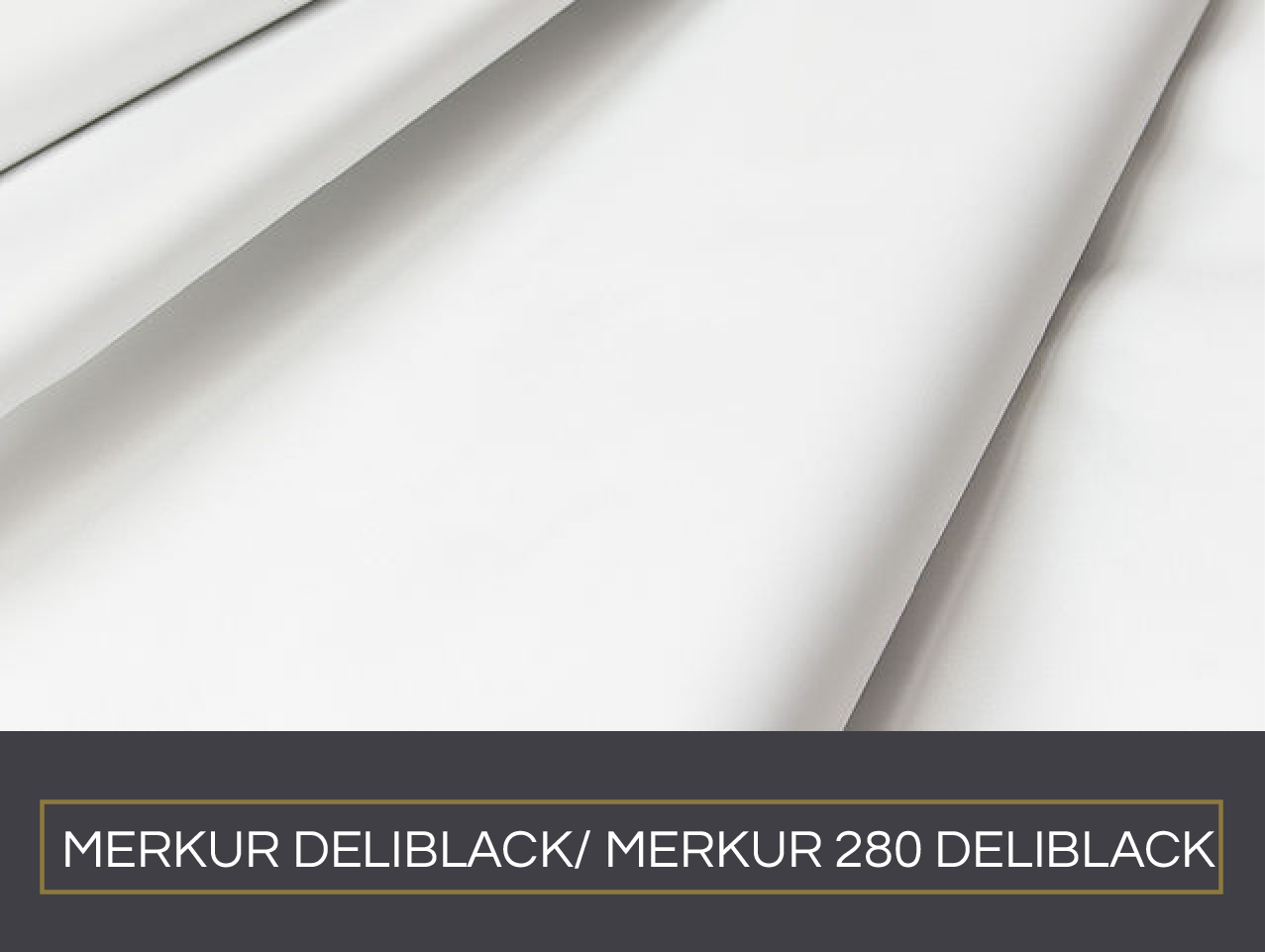

A silky but matt blackout
Width ca. 140 cm | room high ca. 280 cm | Weight ca. 300 g/m² | 100% Polyester Acrylat coating
Flame resistance:
DIN 4102/B1, BS 5867 Typ B,
IMO Res. A471 (XII), EN 13773
b
A silky but matt blackout with M1
Width ca. 140 cm | room high ca. 280 cm | Weight ca. 320 g/m² | 100% Polyester Acrylat coating
Flame resistance:
M1, IMO Res. A471 (XII), EN 13773
GALAX DELIBLACK
A blackout with a linen structure
Width room high ca. 280 cm | Weigth ca. 375 g/m² | 100% Polyester Acrylat coating
Flame resistance:
DIN 4102/B1, BS 5867 Typ B,
IMO Res. A471 (XII)
A dimout with a weave structure
Width ca. 148 cm | Weight ca. 283 g/m² | Ma­te­ri­al 100% Polyester FR
Flame resistance:
DIN 4102/B1, M1, BS 5867 Typ B,
IMO Res. A471 (XII), EN 13773
A softly draping double satin, a print on both sides is possible
Width ca. 150 cm | room high ca. 300 cm | Weight ca. 260 g/m² | 100% Polyester FR | sound-absorbing
Flame resistance:
DIN 4102/B1, M1, BS 5867 Typ B,
IMO Res. A471 (XII), EN 13773
Air flow resistance: Rs = 1460 Pa s/m DIN EN ISO 29053
Measured sound absorption coefficient: αw = 0,65
class: C
DIN EN ISO 354 I DIN EN ISO 11654
A soft furnishing fabric with a semi-transparent effect
Width ca. 150 cm | room high ca. 300 cm | Weight ca. 106 g/m² | 100% Polyester FR
Flame resistance:
DIN 4102/B1, BS 5867 Typ B,
IMO Res. A471 (XII), EN 13773

A softly draping satin with an elegant sheen
Width ca. 140 cm | Weight ca. 185 g/m² | 100% Polyester Trevira CS | sound-absorbing
Flame resistance:
DIN 4102/B1, BS 5867 Typ C,
IMO Res. A471 (XII), EN 13773
Air flow resistance: Rs = 390 Pa s/m DIN EN ISO 29053
Measured sound absorption coefficient: αw = 0,7
class: C
DIN EN ISO 354 I DIN EN ISO 11654
A furnishing fabric with a natural linen structure
Width ca. 140 cm | Weight ca. 250 g/m² | 100% Polyester FR
Flame resistance:
DIN 4102/B1, BS 5867 Typ B,
IMO Res. A471 (XII), EN 13773


A softly draping crepe and a classical upholstery fabric
Width ca. 140 cm | Weight ca. 300 g/m² | 100% Polyester Trevira CS
Flame resistance:
DIN 4102/B1, DIN EN 1021 Teil 1 + 2, BS 5867 Typ C,
BS 5852 Crib 5, IMO Res. A471 (XII)
Abrasion to martindale: 80.000
Air flow resistance: Rs = 335 Pa s/m DIN EN ISO 29053
Measured sound absorption coefficient: αw = 0,7
class: C
DIN EN ISO 354 I DIN EN ISO 11654
A hard wearing upholstery fabric
Width ca. 140 cm | Weight ca. 280 g/m² | 100% Polyester Trevira CS
Flame resistance:
DIN EN 1021 Teil 1 + 2, BS 5852 Crib 5,
IMO Res. A652 (16)
Abrasion to martindale: 80.000
Air flow resistance: Rs = 109 Pa s/m DIN EN ISO 29053
Measured sound absorption coefficient: αw = 0,6
class: C
DIN EN ISO 354 I DIN EN ISO 11654
A light velvet usable as an upholstery or furnishing fabric
Width ca. 140 cm | Weight ca. 250 g/m² | 100% Polyester Trevira CS
Flame resistance:
DIN 4102/B1, M1, DIN EN 1021 Teil 1 + 2, BS 5867 Typ C, BS 5852 Crib 5, IMO Res. A471 (XII), EN 13773
Abrasion to martindale: 70.000
Air flow resistance: Rs = 199 Pa s/m DIN EN ISO 29053
Measured sound absorption coefficient: αw = 0,7
class: C
DIN EN ISO 354 I DIN EN ISO 11654

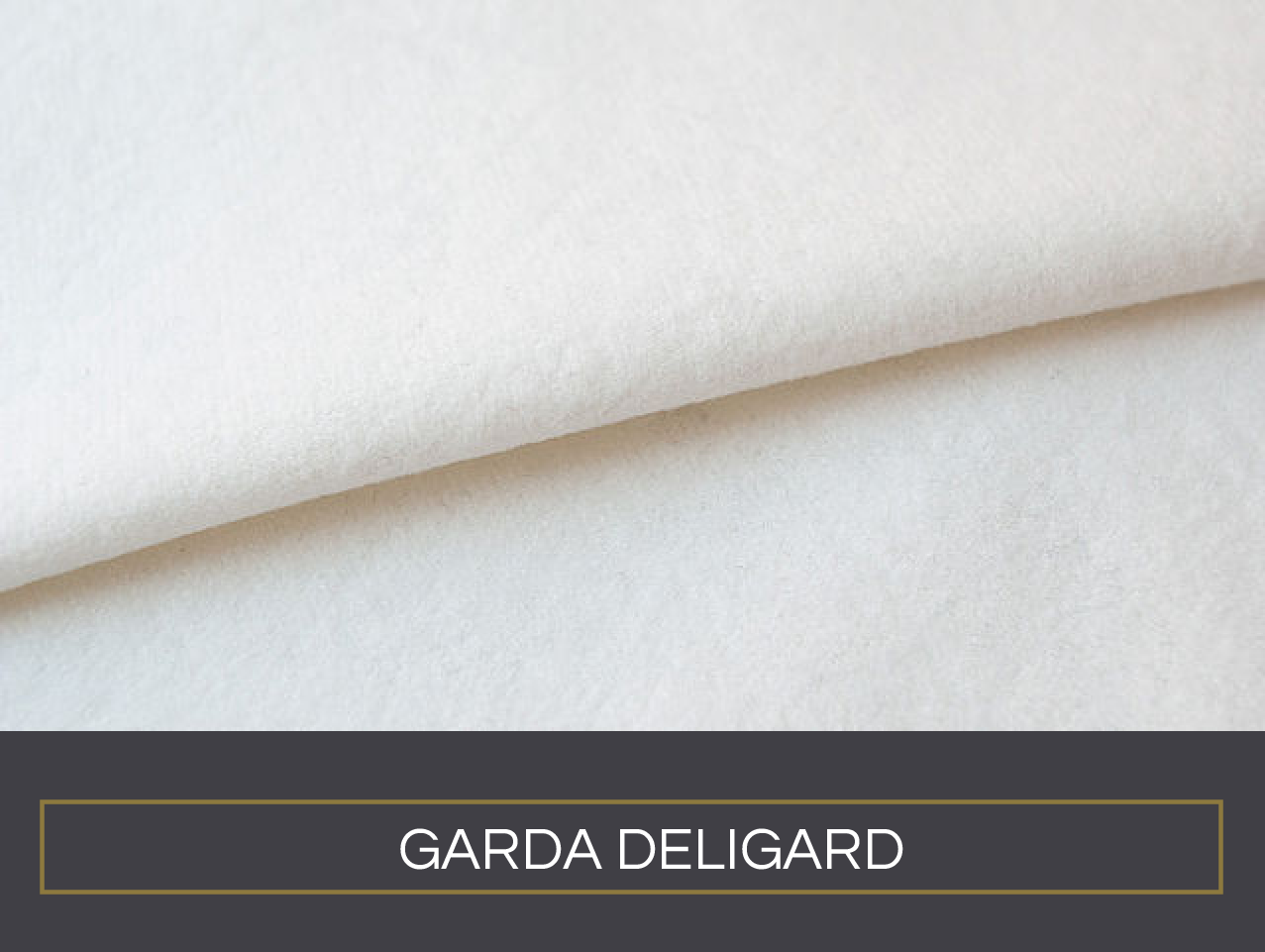

An upholstery fabric with the DELIGARD cleanliness system
Width ca. 140 cm | Weigth ca. 435 g/m² | Effective coat 100% Polyester
Flame resistance:
DIN EN 1021 Teil 1 + 2, BS 5852 Crib 5,
IMO Res. A652 (16)
Abraison to martindale: 40.000

A softly draping furnishing fabric and a light weight upholstery fabric
Width ca. 150 cm | room high ca. 300 cm | Weight ca. 240 g/m² | 100% Polyester FR
Flame resistance:
DIN 4102/B1, M1, BS 5867 Typ B
Abrasion to martindale: 40.000
